Hygromatik StandardLine - the remote steam generator
The new generation of steam generators from the medium-sized German company Hygromatik. As the successor to the Hygromatik CompactLine steam generators, the StandardLine offers a basic model with 7 power classes to meet the different requirements for steam quantities. The StandardLine steam generator impresses with its high flexibility and availability, which is ensured by its modular Modular system modular system. Thanks to this design, the basic model serves as the basis for all further Configuration optionsthe basic model serves through this construction as a basis for all further configuration possibilities, whereby the StandardLine can be individually adapted to the different requirements in the spa and wellness area Humidity control of the bio-sauna.
Steam generation with radiators
Humidification with HygroMatik steam humidifiers is basically suitable for
all water qualities suitable. Particularly low-maintenance is the operation with
softened or demineralized water.
Heating elements heat the water in a steam cylinder as in an immersion heater to produce
pressureless, hygienic steam.

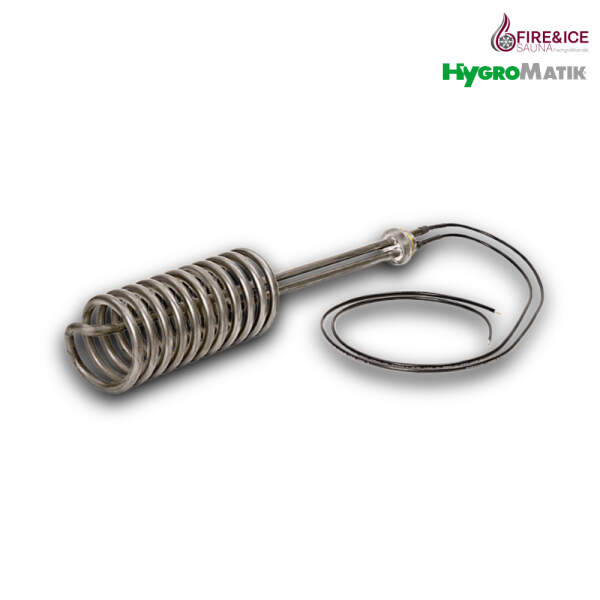

HygroMatik uses resistance heating elements made of a highly corrosion-resistant alloy in all radiator steam humidifiers. They convince by an extremely
high control accuracy, long service life and an almost
uninterrupted and maintenance-free operation when using softened or fully demineralized water
Download Functional Diagram Radiator Steam Humidifier StandardLine Climate Unit
StandardLine connection options
The StandardLine offers a wide range of options for adapting the steam humidifier to individual room conditions. We will be happy to advise you on the available connection options
HyCool (integrated waste water cooling),
HyFlow (DvGW-certified system separator),
Cylinder Star (improved controllability at high supply voltage) and
SuperFlush (cylinder flushing device). we are always interested in the personally best steam solution for your project.
sustainability and quality promise
HygroMatik promises, through the qualitative development of its products, a particularly long service life. Especially the StandardLine steam humidifiers stand out with technologies that have perfected the effective use of energy and resources. This allows the StandardLine steam generators to have a particularly low wear and maintenance maintenance.
- Load shedding between 25% and 100%: programmable temporary or permanent adjustments of operation
- many years of continuous use thanks to improved base materials that give the reusable cylinders even greater temperature resistance and dimensional stability
- separable steam cylinder that can be easily opened and cleaned without chemicals
- Durability: corrosion-resistant stainless steel housing with additional powder coating
- robust blowdown pump to remove hardness components for long operating times and low maintenance requirements
- market-wide highest safety standard among radiator steam humidifiers due to integrated circuit breaker
Service functions
The HygroMatik StandardLine is ideal for remote-controlled circuit planning and method (e.g. by the sauna heater control in the steam sauna)
- simple overview compact output display on the unit application FlexLine climate
- easy to understand menu navigation: always all important unit and process information in view

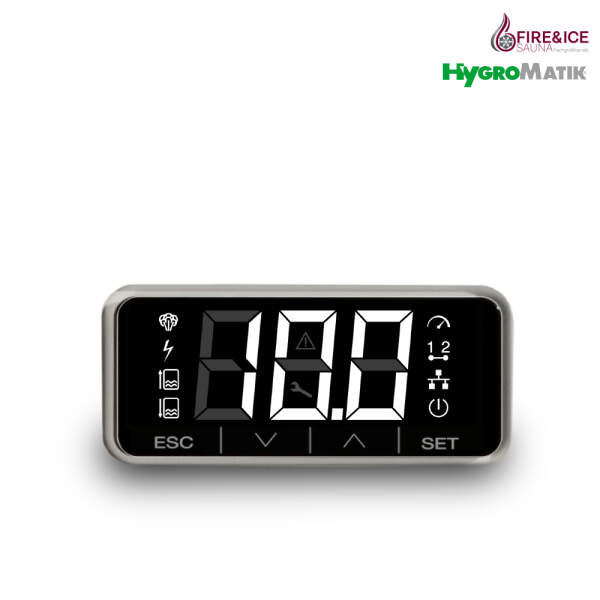

- The control panel is divided into three zones:
- the 4 operating keys esc, set, ^, v
- the 3-digit 7-segment display
- display symbols for operating states
Areas of application StandardLine Climate
Office and conference rooms
The performance of employees essentially depends on motivation, concentration and health aspects. A healthy room climate with optimum air humidity provides the ideal basis for this and also saves energy costs.
Hotels and conference centers
One of the most important tasks in the field of activity of hotels and conference centers is to provide guests with a pleasant stay. A healthy and work-friendly indoor climate plays an essential role in this.
Universities and educational institutions
When people feel comfortable, they are more receptive and more focused on their work. In rooms with many people, however, individuals quickly feel tired. Optimizing the air humidity can help here.
Shopping centers and department stores
More and more customers want a shopping experience in a feel-good atmosphere. Optimum air humidity makes a decisive contribution to a pleasant room climate in which people enjoy spending more time.
Museums and galleries
Museums and galleries often house valuables of inestimable value which, due to their age or condition, require a controllable or constant room climate. Humidification is essential to counteract damage.
Hospitals and medical practices
In the rooms of hospitals and medical practices, the treatment and recovery of patients is the primary concern. A health-promoting room climate is therefore a very important component in the overall offer of a medical facility.
Libraries and antiquarian bookshops
Depending on the temperature, paper takes moisture from the ambient air or releases it into it. If the air is too dry, paper becomes brittle and cracked. Regulated humidification prevents aging and damage to books.
Cruise and offshore
Cruise ships require a tremendous amount of cooling power for air conditioning. Adiabatic cooling systems generate this efficiently and cost-effectively. Regulated humidity also creates a comfortable and healthy climate below deck
Technical data StandardLine air-conditioning radiators
| Unit type |
SLH03 |
SLH06 |
SLH09 |
SLH15 |
SLH25 |
SLH40 |
SLH50 |
| Steam capacity [kg/h] |
2,7-3,3 |
5,5-6,5 |
8,2-9,8 |
13,7-16,4 |
22,7-27,1 |
36,5-43,5 |
45,5 - 54,3 |
| Steam cabin size [m³] |
3,38-4,13 |
6,88-8,13 |
10,25-12,25 |
17,13-20,50 |
28,38-33,88 |
45,63-54,38 |
56,88-67,88 |
| Electrical connection (1)
|
220-240 v / 1 / n / 50-60 Hz |
380-415 v / 3 Ph / 50-60 Hz |
| Electrical power [kW] |
2,1-2,4 |
4,1-4,9 |
6,2-7,3 |
10,3-12,3 |
17,1-20,3 |
27,3-32,6 |
34,1-40,7 |
| Current consumption [a] |
9,4-10,2 |
18,7-20,4 |
10,7-11,7 |
16,0-17,5 |
15,6-17,1 |
25,9-28,3 |
41,5-45,4 |
51,8-56,6 |
| Fuse [a] (2)
|
1 x 16 |
1 x 25 |
3 x 16 |
3 x 20 |
3 x 32 |
3 x 50 |
3 x 63 |
| Number of steam cylinders |
1 |
| Control |
StandardLine |
| Control voltage [v] |
220-240 separate (internal control voltage optional at extra charge) |
| Steam hose connection [mm] |
1 x 25 |
1 x 40 |
2 x 40 |
|
| Condensation hose connection [mm] |
1 x 12 |
2 x 12 |
|
| Empty weight [kg] |
14 |
23 |
45 |
| Operating weight [kg] |
19 |
38 |
82 |
| Unit size WxHxD [mm] (3)
|
350 x 535 x 245 |
425 x 695 x 320 |
590 x 790 x 415 |
| Water connection |
demineralized water / purified condensate / partly softened water / tap water of different qualities 1 to 10bar (100 x 10³ to 1000 x 10³ Pa),13 mm hose |
| Waste water connection |
Spigot ø 1 1/4" |
1) Other voltages on request
2) 1.1 times current consumption after full blowdown. Observe tripping characteristics of circuit breakers. If necessary, select next higher circuit breaker level
3) External dimensions of width and depth. Height including drain socket
