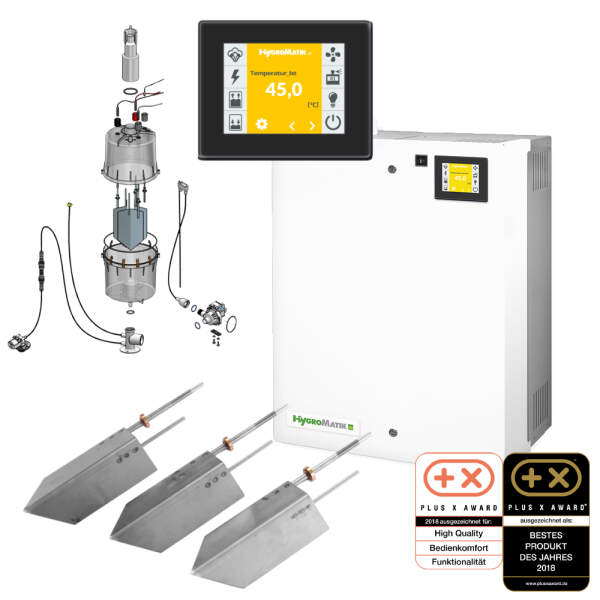

FlexLine steam generators - flexibility that pays off.
The new generation of steam generators from the medium-sized German company Hygromatik. As the successor to the Hygromatik CompactLine steam generators, the FlexLine offers a basic model with 12 power classes to meet the different requirements for steam quantities. The FlexLine steam generator impresses with its high flexibility and availability, which is ensured by its modular Modular system modular system. Thanks to this design, the basic model serves as the basis for all further Configuration optionswhich allows the FlexLine to be individually adapted to the various requirements in the spa and wellness sector. The exclusive and intelligent system was awarded in three categories and the FlexLine steam generators were named "Best Product 2018" with the Plus x Award.
Steam generation with full-surface electrodes
HygroMatik electrode steam generators are particularly suitable for operation with
normal tap water. Electrode steam generation is the perfect solution when simple and reliable generation of humidity or steam is required.
Electrodes are arranged in a special steam cylinder. When water is let into the cylinder, the circuit between the electrodes closes and the water is heated. This produces
pure, odorless water vapor.

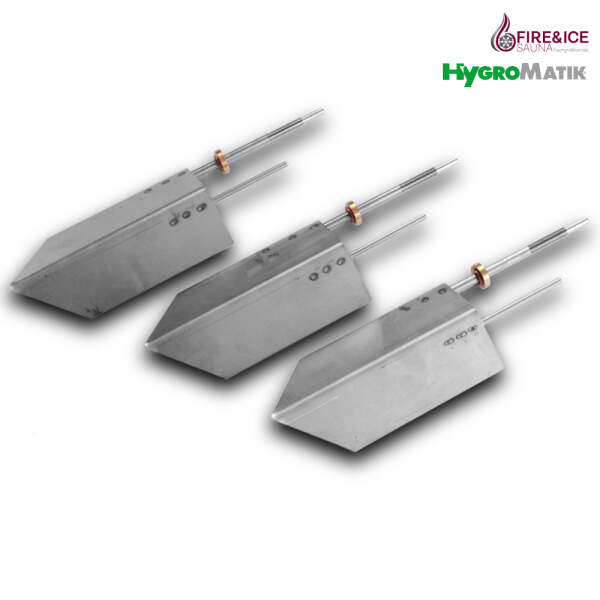

Hygromatik uses in all devices exclusively solid
full-surface electrodes. Due to the high amount of material, these are particularly durable and ideally suited for tap water.
The maintenance effort for the electrode steam generators is particularly low, because the electrodes are replaced less often
need to be replaced less often need to be replaced.

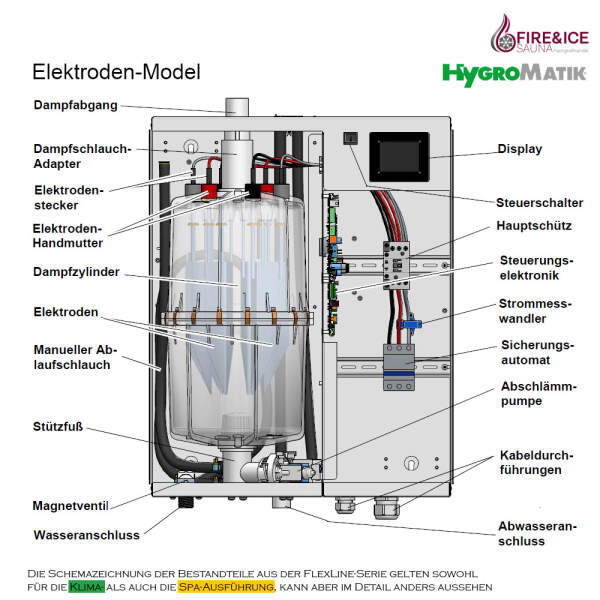

Download functional diagram electrode steam generator FlexLine Spa unit

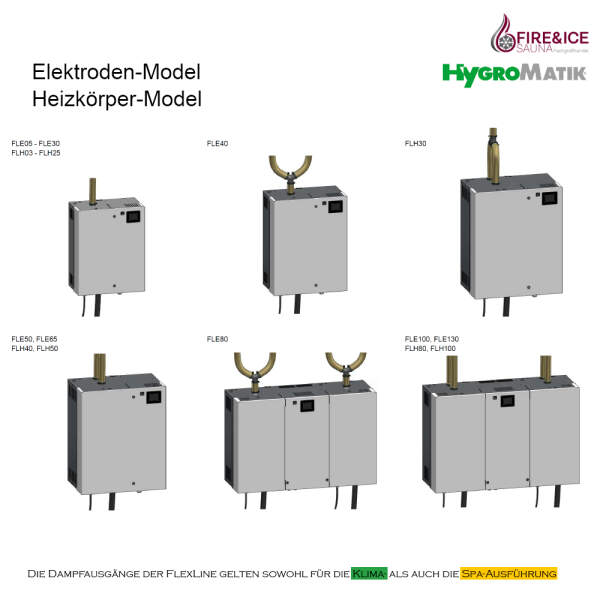

FlexLine connection options
The FlexLine offers a wide range of options to adapt the steam generator to the individual spatial conditions. We will be happy to advise you on the available connection options
HyCool (integrated waste water cooling),
HyFlow (DvGW-certified system separator),
Cylinder Star (improved controllability at high supply voltage) and
SuperFlush (cylinder flushing device). We are always interested in the personally best steam solution for your project.
Operation of FlexLine steam generators

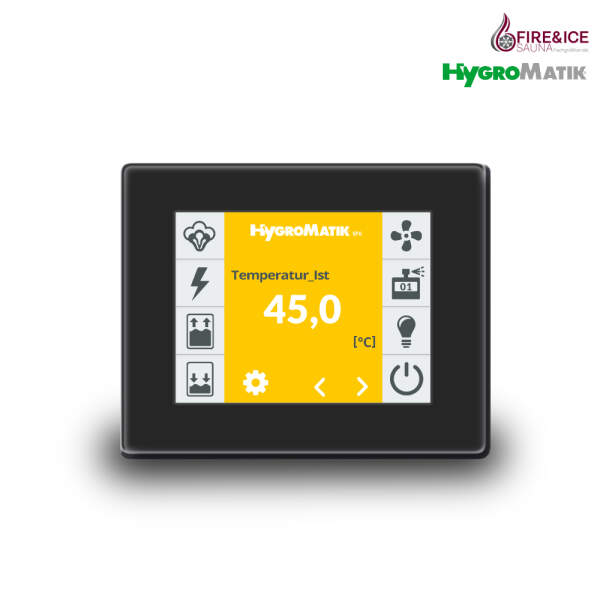

All HygroMatik FlexLine steam generators are equipped with a capacitive
3,5" touch display equipped. Operation and programming is done via a flat and simple menu structure according to the logic of modern smartphones. Software updates can be carried out quickly and easily via USB stick.
- Operating status is visualized by clear pictograms
- Navigation is simple and fast
- System messages and information are displayed in plain text
- Timer functions: fully programmable -> convenient planning of operating times
- Service messages are output with date and time
- Real-time clock
The external control is done optionally with the specially developed Spa Touch Control remote control. The Hygromatik control has a 5" touch screen and can also be installed in the steam bath. It can be combined with all HygroMatik steam bath generator controls.
Sustainability and quality promise
HygroMatik promises, through the qualitative development of its products, a particularly long service life. The FlexLine steam generators in particular feature technologies that have perfected the effective use of energy and resources. This allows the FlexLine steam generators to have an particularly low wear and tear and low maintenance maintenance.
- Load shedding between 25% and 100%: programmable temporary or permanent adjustments of operation
- ECO function for active energy saving with flexible timer functions
- many years of continuous use thanks to improved base materials, which help the reusable cylinders to achieve even higher temperature resistance and dimensional stability
- separable steam cylinder that can be easily opened and cleaned without chemicals
- Durability: corrosion-resistant stainless steel housing with additional powder coating
- robust blowdown pump to remove hardness components for long operating times and low maintenance requirements
- market-wide highest safety standard among electrode steam generators due to integrated circuit breaker
Service functions
The HygroMatik FlexLine is equipped with smart service functions and innovative features for operational safety, achieving a new level of safety, control and overview.
- Diagnostic mode: start via touch display without commissioning the unit
- Service message: selectable service intervals are calculated and issued by the unit according to the amount of steam produced
- Status messages: Intelligent control avoids damage and expensive service calls
- detailed messages: Deviations can be identified and corrected more quickly

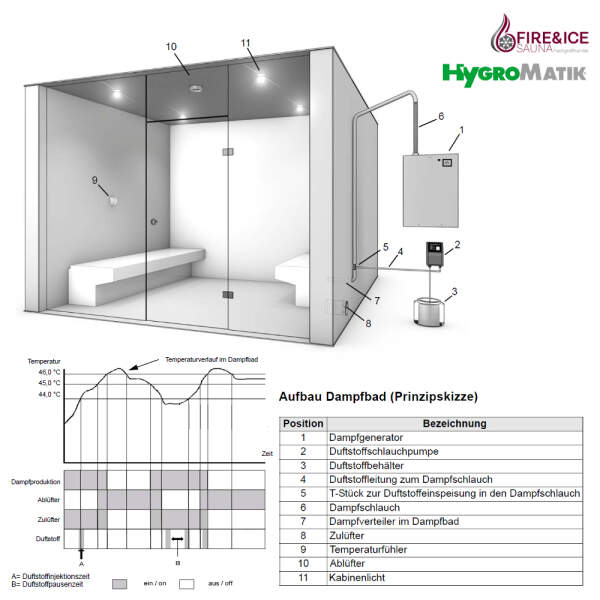

Areas of application FlexLine Spa
Spa resorts and wellness hotels
The recreation, relaxation and health of the guests is clearly in the foreground. Adjusted heat and hygienic steam provide a cleansing and refreshing air humidity in numerous wellness applications, which your visitors will noticeably thank you for.
Fitness clubs and sports studios
Relaxing the body after a sweaty fitness workout in the spa area provides physical and mental balance for the exerciser. Different steam treatments as well as a healthy indoor climate contribute significantly to this.
Cruise and offshore
Extensive spa and wellness services are standard on cruise ships these days. And steam applications are also becoming more and more common on offshore installations. Here, the FlexLine copes with the special technical requirements resulting from the locations in which it is used.

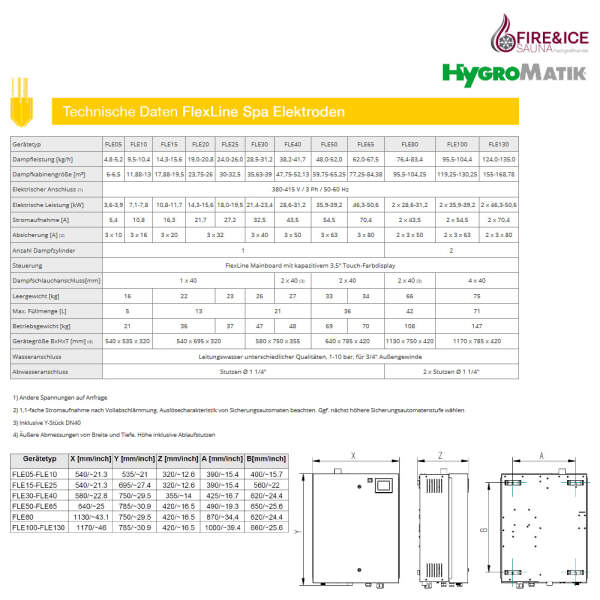

Technical data FlexLine Spa electrode
| Device type |
FLE05 |
FLE10 |
FLE15 |
FLE20 |
FLE25 |
FLE30 |
FLE40 |
FLE50 |
FLE65 |
FLE80 |
FLE100 |
FLE130 |
| Steam capacity [kg/h] |
4,8-5,2 |
9,5-10,4 |
14,3-15,6 |
19,0-20,8 |
24,0-26,0 |
28,5-31,2 |
38,2-41,7 |
48,0-52,0 |
62,0-67,5 |
76,4-83,4 |
95,5-104,4 |
124,0-135,0 |
| Steam cabin size [m³] |
6-6,5 |
11,88-13 |
17,88-19,5 |
23,75-26 |
30-32,5 |
35,63-39 |
47,75-52,13 |
59,75-65,25 |
77,25-84,38 |
95,5-104,25 |
119,25-130,25 |
155-168,78 |
| Electrical connection (1)
|
380-415 v / 3 Ph / 50-60 Hz |
| Electrical power [kW] |
3,6-3,9 |
7,1-7,8 |
10,8-11,7 |
14,3-15,6 |
18,0-19,5 |
21,4-23,4 |
28,6-31,2 |
35,9-39,2 |
46,3-50,6 |
2 x 28,6-31,2 |
2 x 35,9-39,2 |
2 x 46,3-50,6 |
| Current consumption [a] |
5,4 |
10,8 |
16,3 |
21,7 |
27,2 |
32,5 |
43,5 |
54,5 |
70,4 |
2 x 43,5 |
2 x 54,5 |
2 x 70,4 |
| Fuse protection [a] (2)
|
3 x 10 |
3 x 16 |
3 x 20 |
3 x 32 |
3 x 40 |
3 x 50 |
3 x 63 |
3 x 80 |
2 x 3 x 50 |
2 x 3 x 63 |
2 x 3 x 80 |
| Number of steam cylinders |
1 |
2 |
| Control |
FlexLine mainboard with capacitive 3.5" touch color display |
| Steam hose connection [mm] |
1 x 40 |
2 x 40 (3)
|
2 x 40 |
2 x 40 (3)
|
4 x 40 |
| Empty weight [kg] |
16 |
22 |
23 |
26 |
27 |
33 |
34 |
66 |
75 |
| Max. Filling volume [L] |
5 |
13 |
21 |
36 |
42 |
71 |
| Operating weight [kg] |
21 |
36 |
37 |
47 |
48 |
69 |
70 |
108 |
147 |
| Unit size WxHxD [mm] (4)
|
540 x 535 x 320 |
540 x 695 x 320 |
580 x 750 x 355 |
640 x 785 x 420 |
1130 x 750 x 420 |
1170 x 785 x 420 |
| Water connection |
Tap water of different qualities, 1-10 bar, for 3/4" external thread |
| Waste water connection |
Connection piece ø 1 1/4" |
2 x connecting piece ø 1 1/4" |
1) Other voltages on request
2) 1.1 times current consumption after full blowdown. Observe tripping characteristics of circuit breakers. If necessary, select next higher circuit breaker level
3) Including Y-piece DN40
4) External dimensions of width and depth. Height including drain socket
