Lang's vaporizer sauna heater for bio saunas | vapo-therm

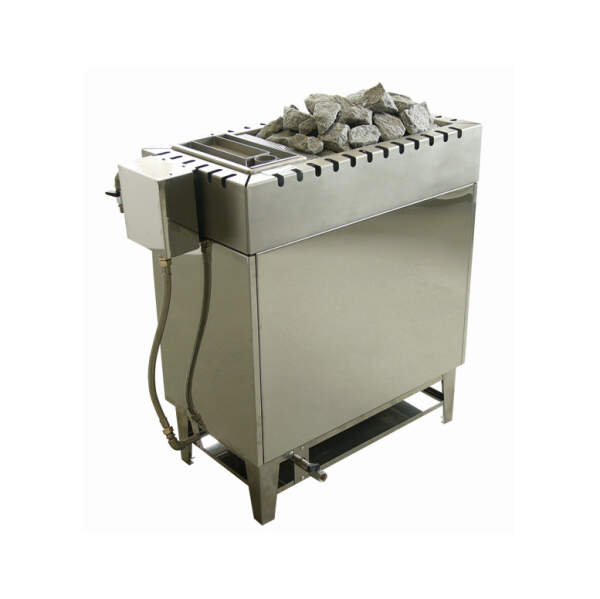

The bavarian vaporizer sauna heater vapo-therm offers due to its construction an optimal Sauna thermics for every demand. The decades-old proven design (double-shell design with large cross-section) of the sauna heater with a heater output of 6.0 kW - 30.0 kW and a vaporizer output of 1.5 kW or 3.0 kW achieves a strong fresh air intake. The resulting large air flow rate has a continuous Air renewal resulting in a pleasant and dry climate in each bio-sauna cabin with a size of 6-50 m³.
With the electric bio sauna heater from Ewald Lang you achieve an environmentally friendly and particularly economical Operation of your commercial professional sauna or private spa. In addition to the low-noise heating, the Lang heater also convinces with an extremely short heating time of the sauna cabin, because there is no heat storage, but a direct Direct dissipation of the convection heat takes place. As a result, the - undesirable - radiant heat is only very slight, and the temperature of the outer shell is accordingly only minimally above the room temperature. The short heating-up time, the elimination of reheating and the avoidance of unnecessary energy loss thus enable high Energy savings and favorable consumption costs. Due to the intelligent positioning of the open evaporator - directly next to the sauna stones - the Ewald Lang steam sauna heater offers strong and concentrated steam emissions, which optimally distribute the Aromas are optimally distributed fragrances.
Product range vaporizer sauna heater vapo-therm from Ewald Lang
| vaporizer sauna heater type |
v 50 |
vG 50 |
v503 |
vG 503 |
vG 70 |
vG 90 |
| Heating capacity in kW |
6 - 9 |
6 - 9 |
6 - 9 |
6 - 9 |
10,5 - 18 |
21 - 30 |
| Size of the sauna cabin in m³ |
6 - 12 |
6 - 12 |
6 - 12 |
6 - 12 |
10 - 28 |
25 - 50 |
| evaporator capacity in kW |
1,5 |
1,5 |
3,0 |
3,0 |
3,0 |
3,0 |
| evaporator capacity in liters |
6,5 |
6,5 |
9 |
9 |
9 |
9 |
| Dimensions (WxDxH) |
50x38x75 |
50x38x82 |
50x38x75 |
50x38x82 |
70x40x82 |
90x40x82 |
| Safety distance |
7 cm |
7 cm |
7 cm |
7 cm |
10 cm |
12 cm |
| Stone filling in kg |
12 |
20 |
12 |
20 |
35 |
50 |
| Net kiln weight in kg |
30 |
30 |
30 |
30 |
42 |
50 |
Download installation and operating instructions typev50-v503-vG50-vG503Download installation and operating instructions type vg70 and vG90Technical data / equipment sauna heater Elektro Lang vapo-therm
+Outer casing: real enamel in anthracite (scratch-resistant, temperature-resistant, odorless) or stainless steel (bright)
+Head frame: Stainless steel and brushed
+Stone basket insert: Stainless steel, reinforced with sturdy v - angle braces, without contact with the radiators
+Back wall: galvanized - optionally in outer shell design
+Radiator support: Stainless steel
+inner jacket: Stainless steel
+underframe: Stainless steel with integrated drip protection
+oven connection: integrated, back panel fixed by 2 screws
+Heating elements: á 1500 watts, extremely low tube surface load (3.2 watts/cm²) enables long service life
+heating capacities: Type v 50 / vG 50 / v 503 / vG 503: 6 kW | 7,5 kW | 9 kW - 1 circuit
Type vG 70: 10,5 kW | 12 kW | 15 kW | 18 kW - 2 circuits (same division)
Type vG 90: 21 kW | 24 kW | 27 kW | 30 - 2 circuits (same division)
+Electric connection: 400v 3n AC
+evaporator tank Chrome-nickel steel, with drain cock 3/8" or 1/2" at 3.0 kW and dry boiling protection
Tank left (standard) or right selectable
+evaporator power: 1500 W (230v 1n AC) | 3.0 kW (230v 1n AC)
+evaporator capacity: approx. 6.5 liters (1.5 kW) | approx. 9 liters (3.0 kW)
+steam capacity: approx. 2,4 kg/h (1,5 kW) | approx. 4,5 kg/h (3,0 kW)
optional equipment for bio sauna heaters vapo-therm
+GSK - version = large stone basket, which doubles the amount of stones (new height 82cm)
+Stove rail made of wood - available in 2 versions and custom-made -> replaces the need for a stove guard, as the rail can be fixed on all 4 sides
+Back wall in enamel anthracite or stainless steel (bright) - if the back wall is visible
+chrome steel cable cover - to cover the silicone cable and the cable gland
+automatic fresh water filling
+herb insert with fine sieve (for dry herbs)
EMv and vDE directives regulation
The vapo-therm sauna heater from Ewald Lang complies with the provisions of directive 2006/95/eg. The provisions of the EMv 2004/108/eg directive are complied with and confirmed by vDE mark approval certificate no. 40041379. By fulfilling the EN standards the device carries the CE marking. The sauna heater is technically at the highest level and 100% Made in Germany.
