Cover protection system for sauna heaters with
Automatic switch-off in case of pressure load. If the switch-off rocker is pressed down by an object, the heating process is interrupted or does not start. If the object is removed, the shut-off rocker returns to the original position and operation continues.

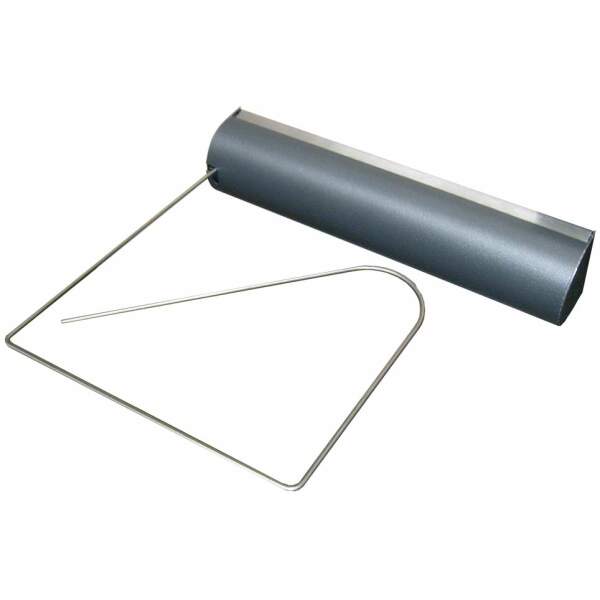

The cover protection system consists of a stainless steel shut-off rocker and a shut-off system in a robust metal housing in anthracite pearl effect. Wall mounting directly above the furnace. Thanks to
five different sizes suitable for all eos sauna heaters.

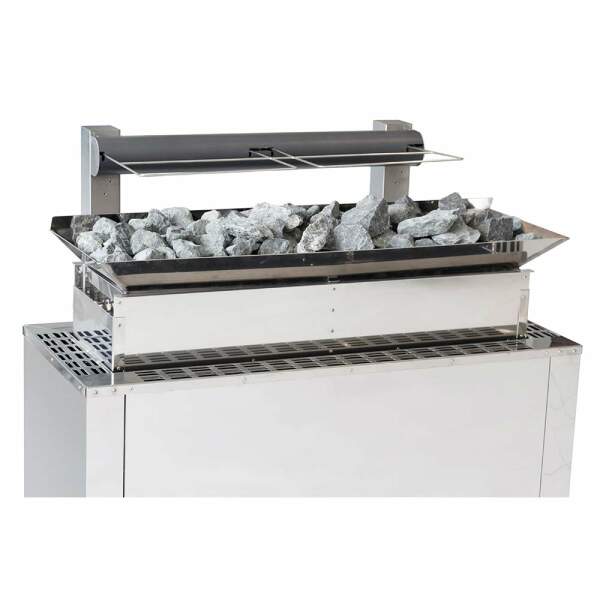

Easy to install and very reliable. For certain sauna heaters, the system can also be mounted directly on the heater with an additional frame.
The eos cover protection system is a tested, standard-compliant
Safety solution (according to eu 60335-2-53). It is required for sauna systems e.g. with remote start, remote control or with a time preselection and minimizes the risk that the sauna heater can be switched on in an unsafe condition (e.g. a forgotten towel on the heater). This system is required, for example, for the wci-01 Web App module for remote control via smartphones / tablets
Compatible with all eos control units and almost all sauna heaters.
Switch-off rockers - type overview
| Type |
Item number |
Dimensions (HxWxD) |
matching eos sauna heaters |
| Type 1 |
260-94.4421 |
140 x 328 x 322 mm |
Thermat (Bi-O)
ThermoTec
Bi-O Tec
43.FN
Euro
Cubo
FinnRock
Hercules / Stone S25
Myth s35 / S45 |
| Type 3 |
260-94.4425 |
140 x 728 x 322 mm |
Hercules xl S50
P1 |
| Type 4 |
260-94.4724 |
140 x 328 x 482 mm |
EuroMax
Bi-O Max
Hercules S60
Stone S60 |
| Type 5 |
260-94.4725 |
140 x 728 x 482 mm |
34.G
Goliath
Hercules xl S120 |
| Type 6 |
260-94.5624 |
140 x 328 x 222 mm |
Mini
M3
Filius (Bi-O)
Gracil (Bi-O) |
