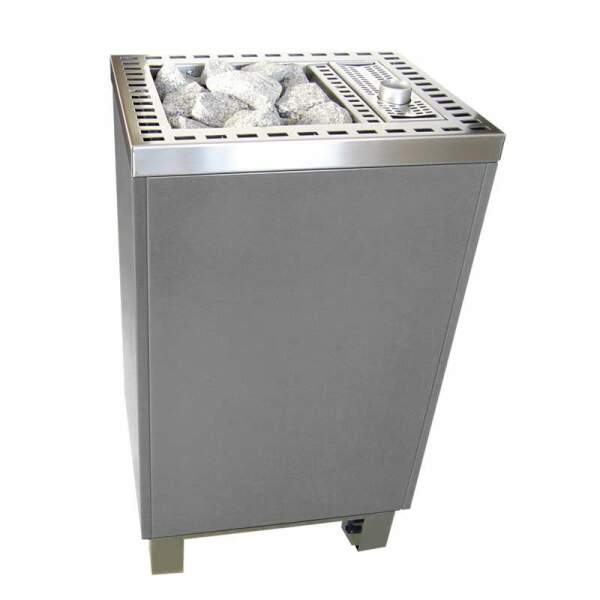

Premium combination sauna heater tHERMOS tm48-v - Ewald Lang
The exclusive premium sauna heater line thermos-vapo from Ewald Lang combines the attributes of Design and power like no other sauna heater model.
As electric high-performance sauna heaters in a timelessly slim design body, the thermos-bio heaters are perfectly suited for modern Finnish or bio/moisture saunas in the home or business sector.
especially in sauna cabins with large glass surfaces, the Lang electric combination sauna heater functions as a timeless eye-catcher - thanks to its practical, narrow footprint it is suitable for both small private saunas (from 5 m³) and medium-sized professional cabins (up to 18 m³). The four visible sides allow free placement in the room - even as a centerpiece.
Ewald Lang's tried and tested thermos-vapo sauna heaters are particularly convincing due to their extremely short heating-up time and very quiet heating-up. This results in a very environmentally friendly and economical operation.
Optional equipment - thermos bio sauna furnaces can be expanded in many ways:
- automatic fresh water filling for Langs evaporator systems via separate inlet in the evaporator tank, with mechanical float valve in the external level tank (bxtxH: 170/260 x 100 x 170 mm)
- Herb support with fine sieve made of stainless steel (for dry herbs), instead of aroma support
- Outer casing in anthracite (enamel)
- Head frame in anthracite (enamel)
- Oven railing made of wood - all 4 sides are possible, holder angle made of stainless steel
- Cable cover in chrome steel
technical data - sauna heater tm48-v by Ewald Lang
|
thermos - type tm 48-V |
Dimensions w x d x h |
48 x 38 x 82 cm |
Outer casing |
Stainless steel, blank (4-sided) - optional anthracite color (scratch-resistant, temperature-resistant, odorless) |
Head frame |
Stainless steel, brushed - optionally in enamel anthracite black |
Stone basket insert |
Stainless steel, without contact to radiators |
Radiator support |
Stainless steel |
Inner jacket |
Stainless steel |
Base frame |
Stainless steel with integrated drip protection |
Furnace connection |
integrated, electrical connection screwed downwards |
Heating element |
1500 watt, extra durable |
Heating capacities |
6,0 | 7,5 | 9,0 kw - 1 circuit 10,5 | 12,0 kw - 2 circuits |
Electrical connection |
400V 3n AC |
Safety distance |
min. 7 cm (up to 10,5 kw), min. 10 cm (12,0 kw ) on all sides to combustible parts |
Evaporator tank |
Chrome-nickel steel, with drain cock 3/8" and dry running protection, container left (standard) or right selectable
|
Evaporator capacity |
1500 w - 230v 1n AC |
Evaporator capacity |
approx. 5 liters |
Steam output |
approx. 2,4 kg/h |
Stone filling |
approx. 25 kg |
Net kiln weight |
approx. 36 kg |
